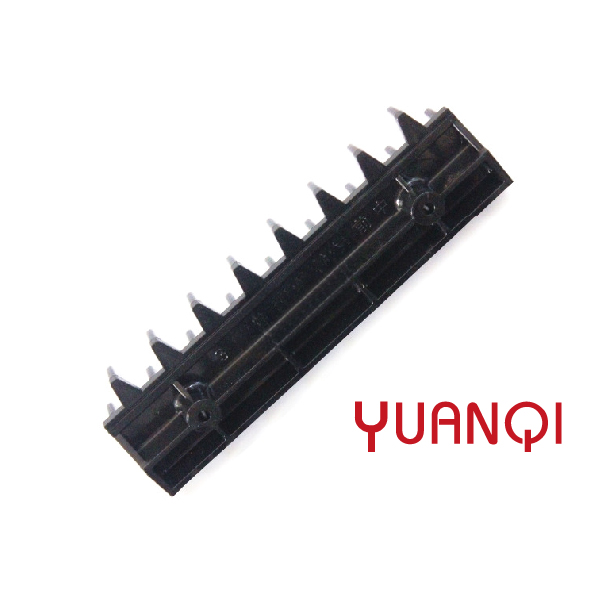

Canny escalator step frame BEVG escalator warning strip

For product confirmation, please provide the part number, size or number of teeth of the escalator step frame.

Brand: Canny

Type: BEVG

Material: Plastic

Applicable: Canny escalator

Send email to us

Product Detail

Product Display

Canny-escalator-step-frame-BEVG-H2106230-escalator-warning-strip.......

Specifications

Brand	Type	Material	Applicable
Canny	BEVG	Plastic	Canny Elevator

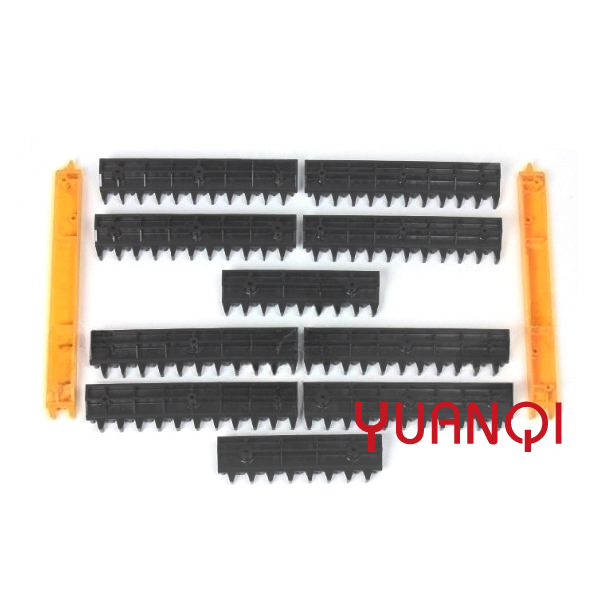

CANNY BEVG frame 12-piece set

BEVG left: length 403mm, width 27mm, center hole spacing 137mm, outer two hole spacing 355mm
BEVG right: length 403mm, width 27mm, center hole spacing 137mm, outer two hole spacing 355mm
BEVG front left: 200mm long, 35mm wide, 81mm hole spacing, 22 teeth
BEVG front right: 200mm long, 35mm wide, 81mm hole spacing, 22 teeth
BEVG front center: length 154mm, width 35mm, hole spacing 100mm, 17 teeth
BEVG rear left: length 200, width 47mm, hole spacing 81mm, 22 teeth
BEVG rear right: length 200, width 47mm, hole spacing 81mm, 22 teeth
BEVG rear center: length 154mm, width 47mm, hole spacing 100mm, 17 teeth
