Torin GTW2 elevator gearless traction machine Gipili nga Imahe
  • Torin GTW2 elevator gearless traction machine
  • Torin GTW2 elevator gearless traction machine
  • Torin GTW2 elevator gearless traction machine

Torin GTW2 elevator gearless traction machine

Palihug ihatag ang piho nga nameplate alang sa kini nga produkto alang sa kinutlo ug pagkumpirma sa petsa sa pagpadala.


  • Brand: Torin
  • Type: GTW2
  • Magamit: Torin elevator
    • Pag-download sa PDF

    Detalye sa Produkto

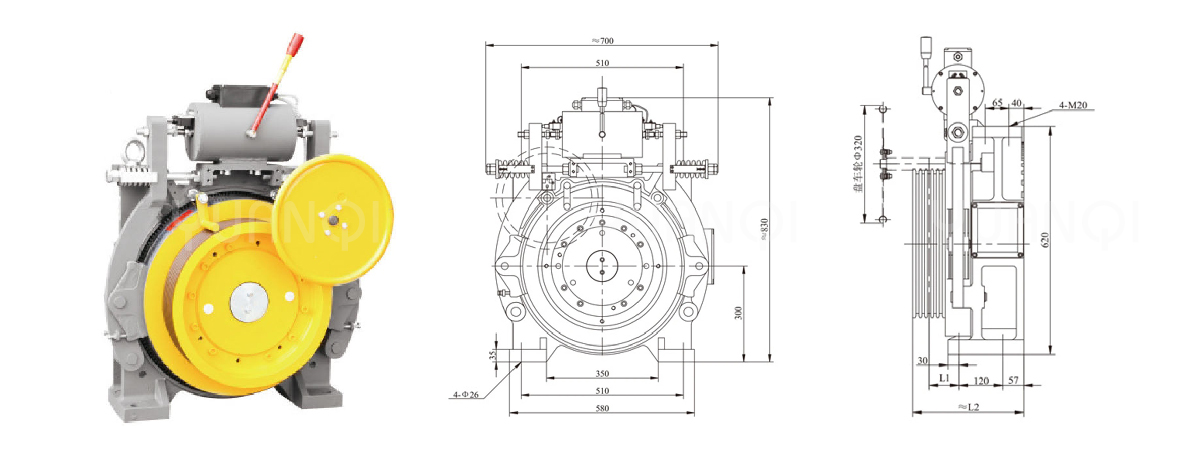

    Pagpakita sa Produkto

    Torin GTW2 elevator gearless traction machine...

    Mga detalye

    Torin Elevator Gearless Traction Machine GTW2
    Spec Lulan (kg) Lift Speed ​​(ms) Taas (m) Sheave Diam (mm) Giputol sa pisi (mm) Karon (A) Torque (Nm) Rated Speed ​​(rpm) Frequency (Hz) Gahum (KW) poste Rating INS. Klase IP Code
    GTW2-60P5 630 0.5 ≤80 Φ400 4×Φ10×16 5.6 450 48 8 2.3 20 S5(40%) F IP41
    GTW2-61P0 630 1 ≤80 Φ400 4×Φ10×16 10.6 450 96 16 4.5 20 S5(40%) F IP41
    GTW2-61P5 630 1.5 ≤80 Φ400 4×Φ10×16 16.5 450 144 24 6.8 20 S5(40%) F IP41
    GTW2-61P6 630 1.6 ≤80 Φ400 4×Φ10×16 16.5 450 153 25.5 7.2 20 S5(40%) F IP41
    GTW2-61P7 630 1.75 ≤80 Φ400 4×Φ10×16 18 450 167 27.8 7.9 20 S5(40%) F IP41
    GTW2-62P0 630 2 ≤80 Φ400 4×Φ10×16 20.3 450 192 32 9 20 S5(40%) F IP41
    GTW2-80P5 800 0.5 ≤80 Φ400 5×Φ10×16 6.8 550 48 8 2.8 20 S5(40%) F IP41
    GTW2-81P0 800 1 ≤80 Φ400 5×Φ10×16 12.8 550 96 16 5.5 20 S5(40%) F IP41
    GTW2-81P5 800 1.5 ≤80 Φ400 5×Φ10×16 20.8 550 144 24 8.3 20 S5(40%) F IP41
    GTW2-81P6 800 1.6 ≤80 Φ400 5×Φ10×16 20.8 550 153 25.5 8.8 20 S5(40%) F IP41
    GTW2-81P7 800 1.75 ≤80 Φ400 5×Φ10×16 21.8 550 167 27.8 9.6 20 S5(40%) F IP41
    GTW2-82P0 800 2 ≤80 Φ400 5×Φ10×16 24.9 550 192 32 11 20 S5(40%) F IP41
    GTW2-100P5 1000 0.5 ≤80 Φ400 5×Φ10×16 8 670 48 8 3.4 20 S5(40%) F IP41
    GTW2-101P0 1000 1 ≤80 Φ400 5×Φ10×16 15.7 670 96 16 6.7 20 S5(40%) F IP41
    GTW2-101P5 1000 1.5 ≤80 Φ400 5×Φ10×16 25.2 670 144 24 10 20 S5(40%) F IP41
    GTW2-101P6 1000 1.6 ≤80 Φ400 5×Φ10×16 25.2 670 153 25.5 10.7 20 S5(40%) F IP41
    GTW2-101P7 1000 1.75 ≤80 Φ400 5×Φ10×16 26.7 670 167 27.8 11.7 20 S5(40%) F IP41
    GTW2-102P0 1000 2 ≤80 Φ400 5×Φ10×16 30.3 670 192 32 13.4 20 S5(40%) F IP41
    GTW2-110P5 1150 0.5 ≤80 Φ340 8×Φ8×12 9.2 670 56 9.4 3.9 20 S5(40%) F IP41
    GTW2-111P0 1150 1 ≤80 Φ340 8×Φ8×12 17.7 670 112 18.7 7.9 20 S5(40%) F IP41
    GTW2-111P5 1150 1.5 ≤80 Φ340 8×Φ8×12 28.4 670 168 28 11.8 20 S5(40%) F IP41
    GTW2-111P6 1150 1.6 ≤80 Φ340 8×Φ8×12 28.4 670 180 30 12.6 20 S5(40%) F IP41
    GTW2-111P7 1150 1.75 ≤80 Φ340 8×Φ8×12 30.4 670 198 33 13.9 20 S5(40%) F IP41
    GTW2-112P0 1150 2 ≤80 Φ340 8×Φ8×12 35.7 670 225 37.5 15.8 20 S5(40%) F IP41

    Remark:Ang makina mahimong ma-configure gamit ang handwheel ug ang remote manual brake release nga 4m.

    Torin GTW2 elevator gearless traction machine, Torin lift traction machine. Mahimong ilisan sa GTW9 ang GTW2. Kung kinahanglan nimo ang ubang mga accessories sa elevator, palihug ipadala kanamo ang pangutana, nagtanyag kami daghang mga modelo.
