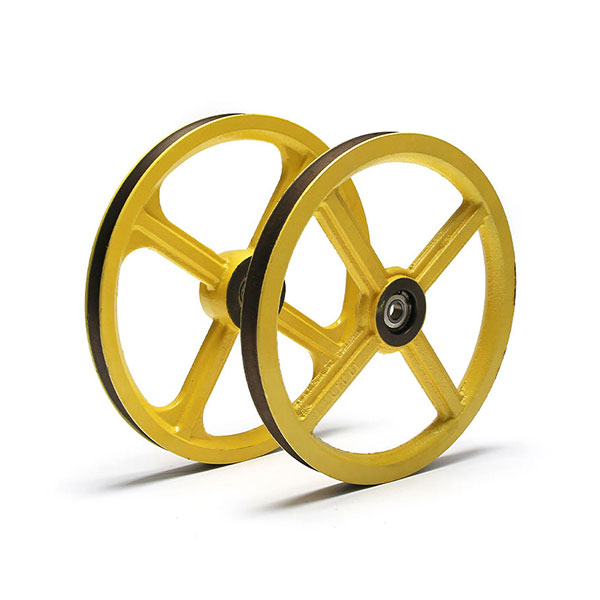

Category number | Sheave pitch diameter | Nominal diameter of wire rope | A | B | Counterweight mass | Applicable status |
AO1 | 200 | 6 | 300-400 | 20-80 | 12kg | ≤50m |
A02 | 6 | 16kg | 50-100 | |||
A03 | 240 | 6、8 | 12kg | ≤50m | ||
A04 | 6、8 | 16kg | 50-100 | |||
A05 | 8 | 24kg | 50-100 |
Counterweight mass | Counterweight material | E | F | G |
6kg | cast iron | 210 | 45 | 85 |
8kg | 250 | 50 | 105 | |
12kg | 280 | 50 | 130 | |
8kg | heavy stone | 265 | 70 | 130 |
12kg | 265 | 85 | 170 |
1. The usage status in the parameters in the above table are recommended parameters, and the specific parameters must be calculated and determined based on the actual status;
2. The table is a list of counterweight block parameters, which are determined based on actual configuration.
