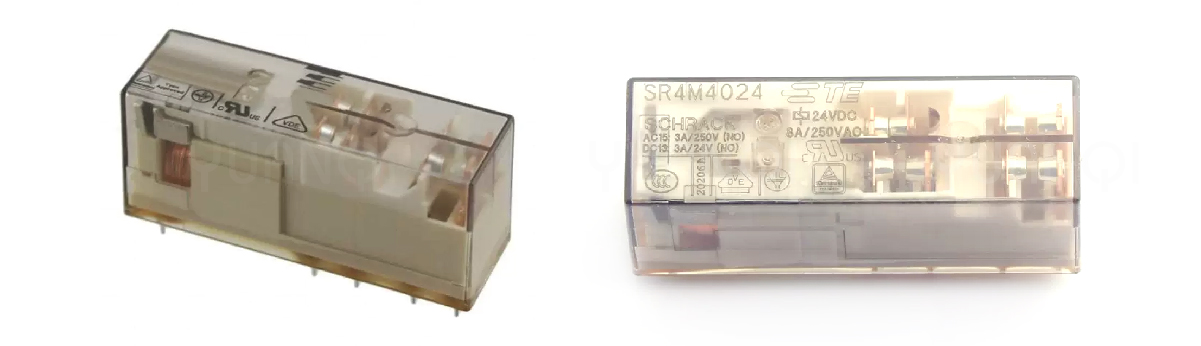

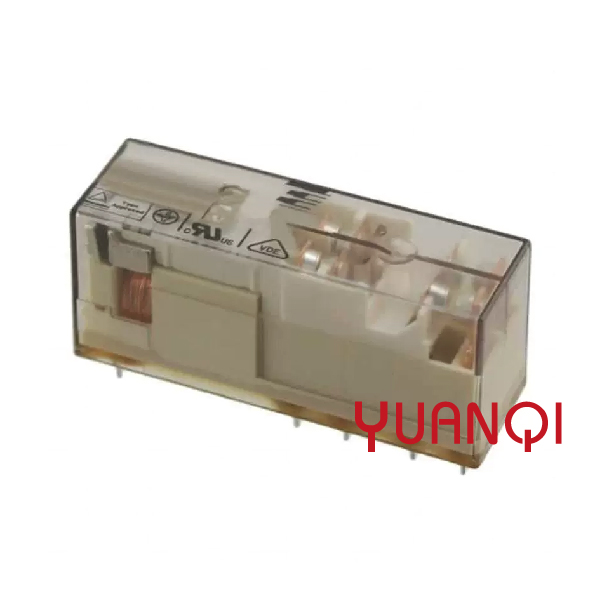

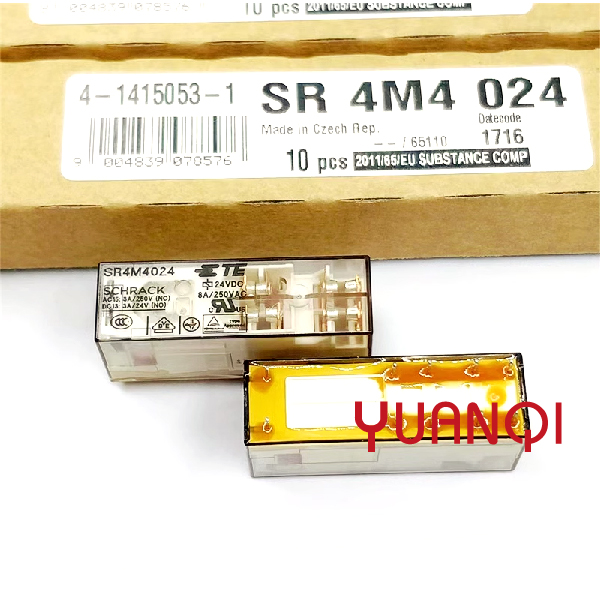

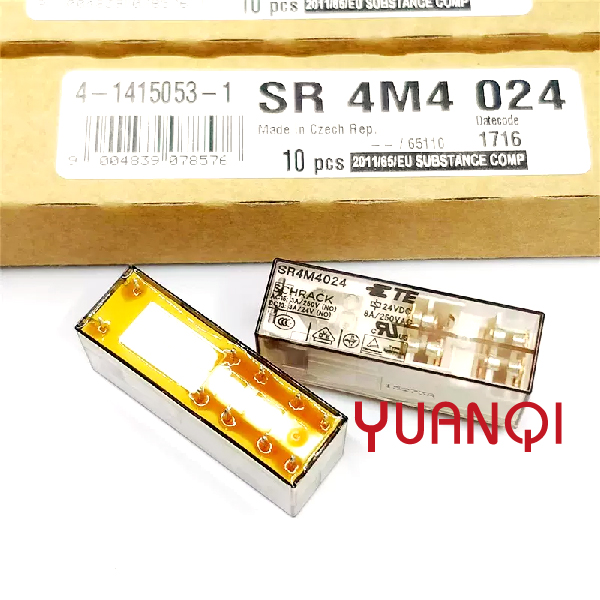

Elevator safety relay SR4M4024 24VDC 8A 4-1415053-1 Featured Image
  • Elevator safety relay SR4M4024 24VDC 8A 4-1415053-1
  • Elevator safety relay SR4M4024 24VDC 8A 4-1415053-1
  • Elevator safety relay SR4M4024 24VDC 8A 4-1415053-1
  • Elevator safety relay SR4M4024 24VDC 8A 4-1415053-1

Elevator safety relay SR4M4024 24VDC 8A 4-1415053-1


  • Brand: General
  • Product Model: SR4M4024
  • Applicable: General
    • Download PDF

    Product Detail

    Product Display

    Elevator safety relay SR4M4024 24VDC 8A 4-1415053-1....

    Product Display

    Brand General
    Product Type Elevator safety relay
    Model SR4M4024
    Series SR4,SHRACK
    Mounting Type Through hole
    Coil voltage 24VDC
    Contact Profile 4PST-3NO/1NC (3 Form A, 1 Form B)
    Rated Contact (Current) 8A
    Switching Voltage 400VAC - Maximum
    Termination Style PC Pin
    Must Pull-in Voltage 18 VDC
    Must Release Voltage 2.4 VDC
    Operating Temperature  -25℃~70℃
    Contact Material Silver Tin Oxide (AgSnO)
    Coil Current 33.3mA
    Coil Power 800mW
    Coil Resistance 720 Ohms
