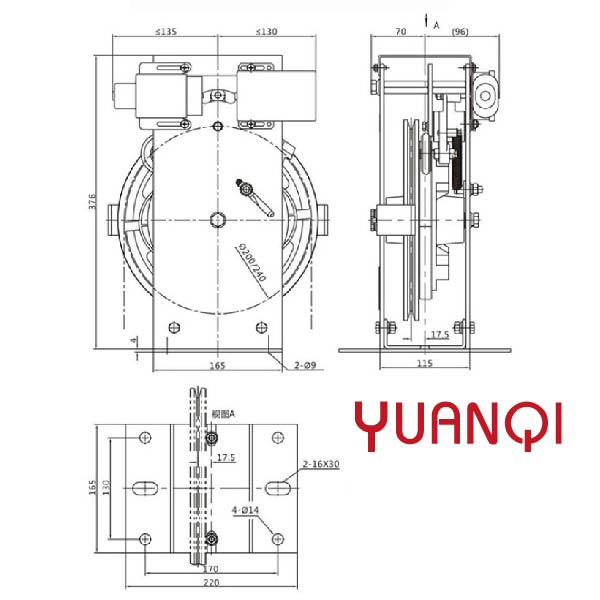

Elevator speed governor OX-187
Product Display
Specifications
| Product type | Elevator overspeed governor |
| Product model | OX-187 |
| Covered specifications (Rated speed) | ≤0.63m/s; 1.0m/s; 1.5-1.6m/s; 1.75 m/s; 2.0 m/s |
| Sheave diameter | φ200mm; φ240mm; φ300mm |
| Wire rope diameter | φ6mm,φ8mm (Depending on the rope round state) |
| Pulling force | ≥500N |
| Tesion device | Standard OX-200, optional OX-300 |
| Power supply voltage | Standard AC220V, optional DC24V |
| Work location | Car side or counterweight side |
| Upward control | Permanent-magnet synchronous traction machine brake, counterweight safety gear, two-way security clamp |
| Downward control | Safety gear |
| Remote control | operation and electrical switch reset can be tested electrically; mechanical mechanism can reset automatically |
Elevator speed governor OX-187, elevator speef limiter Two-way machine roomless electromagnetic. Other models are also available: OX-186A, OX-186, OX-186B. If you need different styles, feel free to contact us. We have a variety of elevator components available.
