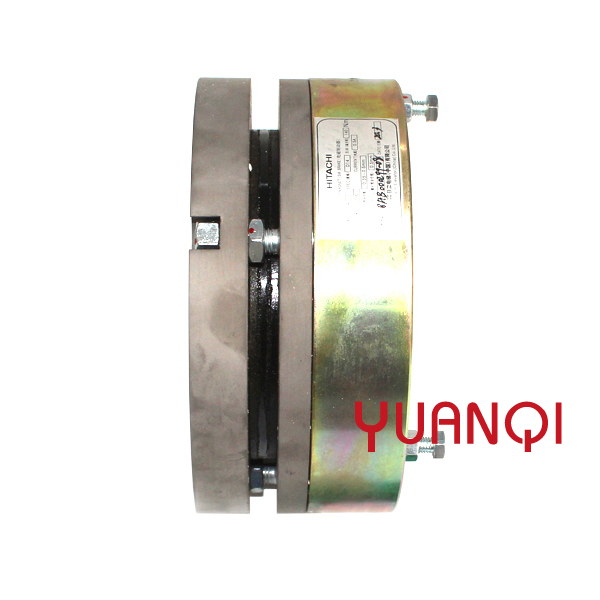

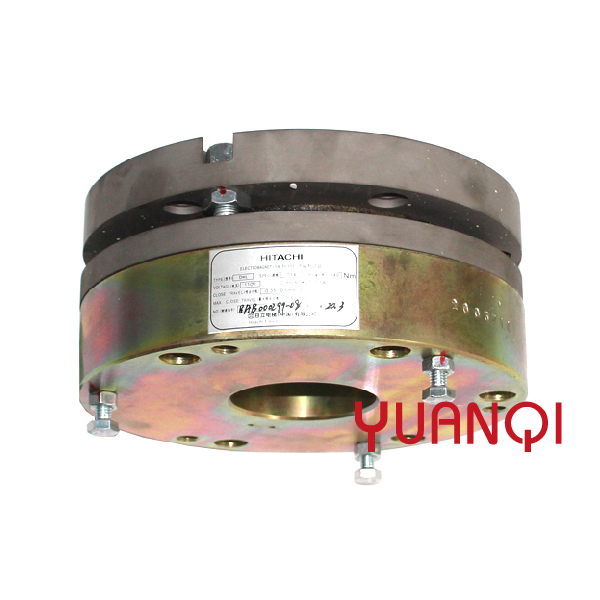

Hitachi escalator electromagnetic brake ESBR-S L M brake escalator brake device DHL-D14 D12

Escalator brakes are used to control and adjust the running speed of the escalator (emergency brake), and quickly stop the operation of the escalator in an emergency to ensure the safety of passengers.

Brand: Hitachi

Type: ESBR-L
ESBR-S
ESBR-M

Voltage: 110V

B.M.: 140N.m

Close Travel: 0.3-0.5mm

Current: 0.5A

Send email to us

Product Detail

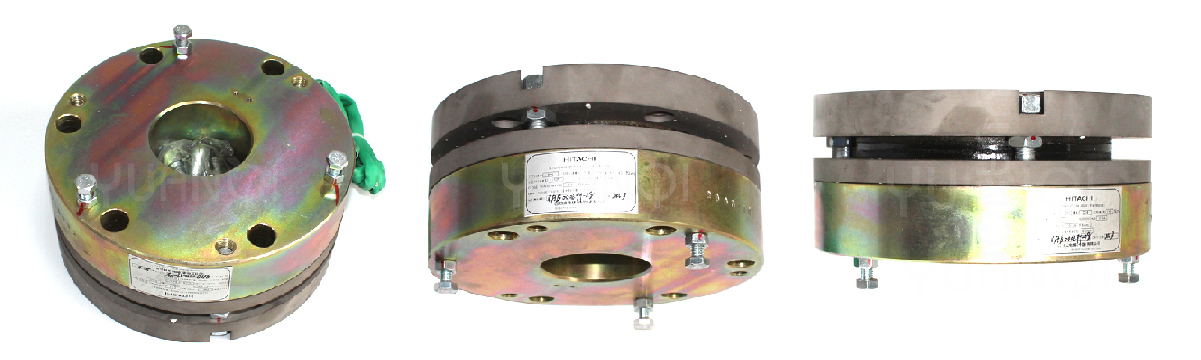

Product Display

Hitachi-escalator-electromagnetic-brake-ESBR-S-L-M-brake-escalator-brake-device DHL-D14 D12.......

Specifications

Brand	Type	Voltage	B.M.	Close Travel	Current
HITACHI	ESBR-L/ESBR-S/ESBR-M	110V	140N.m	0.3-0.5mm	0.5A

The holding brake is usually located in the upper machine room of the escalator. When a fire, breakdown or other emergency occurs, passengers or staff can trigger the holding brake and set it to emergency braking status. Once the holding brake is triggered, it quickly applies braking force and stops or slows down the escalator through friction or other mechanisms.
