Lift pit tensioning device OX-200 tensioning wheel swing rod speed limiter


  • Merk: Umum
  • Tipe: OX-200
  • Diameter lingkaran pitch sheave: 200 mm, 240 mm
  • Diameter nominal tali kawat pembatas kecepatan: 6mm, 8mm (parameter ing ndhuwur dicocogake miturut paramèter teknis saka limiter kacepetan sing cocog)
  • Tipe counterweight: barite (bijih kapadhetan dhuwur), wesi tuang
  • Panggonan instalasi: Pit guide rail sisih
  • Struktur struktur:: jinis pendulum
  • ditrapake: Umum
    • Ngundhuh PDF

    Detail Produk

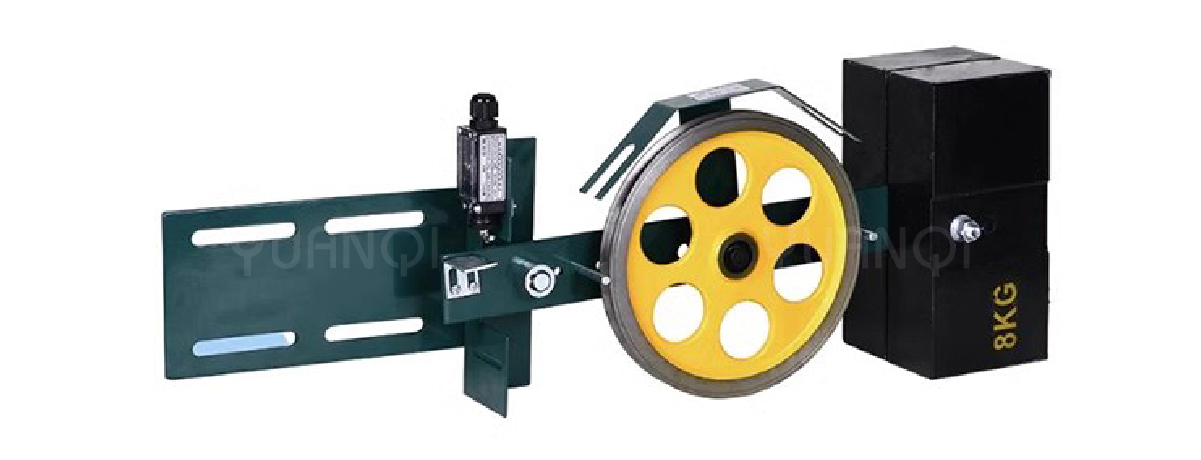

    Tampilan produk

    Lift-pit-tensioning-device-OX-200-tensioning-wheel-swing-rod-speed-limiter..

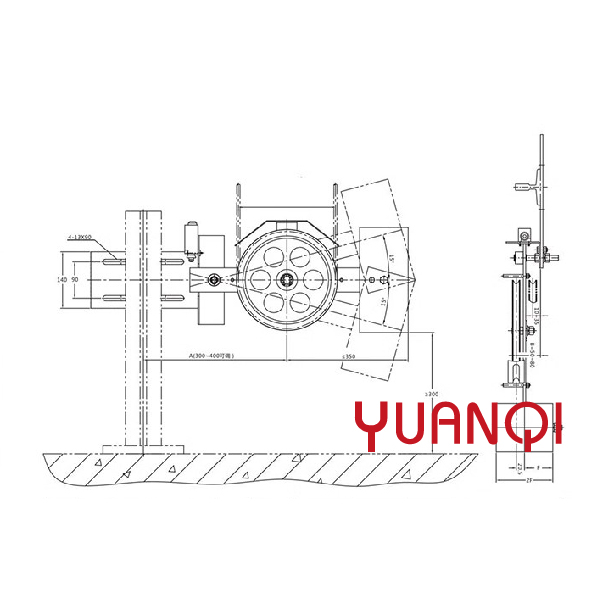

    Spesifikasi

    Nomer kategori Sheave pitch diameteripun diameteripun nominal saka tali kawat A B Massa counterweight Status sing ditrapake
    AO1 200 6 300-400 20-80 12 kg ≤50m
    A02 6 16 kg 50-100
    A03 240 6, 8 12 kg ≤50m
    A04 6, 8 16 kg 50-100
    A05 8 24 kg 50-100



    Massa counterweight materi counterweight E F G
    6 kg wesi tuang 210 45 85
    8 kg 250 50 105
    12 kg 280 50 130
    8 kg watu abot 265 70 130
    12 kg 265 85 170

    1. Status panggunaan ing paramèter ing tabel ing ndhuwur minangka paramèter sing disaranake, lan paramèter tartamtu kudu diwilang lan ditemtokake adhedhasar status nyata;

    2. Tabel punika dhaftar paramèter blok counterweight, kang ditemtokake adhedhasar konfigurasi nyata.
