The escalator step chain is a key component that connects and drives the escalator steps. It is usually made of high-strength alloy steel and consists of a series of precision-machined chain links. Each link undergoes a special heat treatment process to ensure that it has extremely high tensile strength, wear resistance and fatigue resistance.
The step chain connects all the steps of the escalator and forms a closed ring structure. When the escalator starts, the drive device drives the step chain to move, thereby pulling the steps to circulate along the preset track to realize the passenger transportation function.
We provide step chain series of different brands:
|

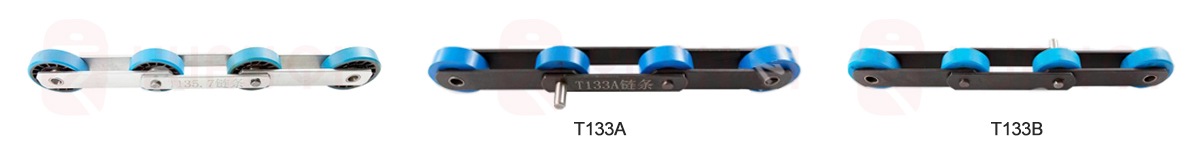

Otis Series |
|||
|
Model |
T135.7 |
T133A |
T133B |
|
Pitch |
135.73 |
133.33 |
133.33 |
|
Outer chain plate width*thickness |
28*5 |
40*5 |
30*5 |
|
Inner plate width*thickness |
35*5 |
40*5 |
35*5 |
|
Scroll Wheel |
76.2*22 skeleton wheel |
70*25-6204 |
70*25-6204 |
|
Pin |
12.7 |
14.63 |
14.63 |
 |
|||
|

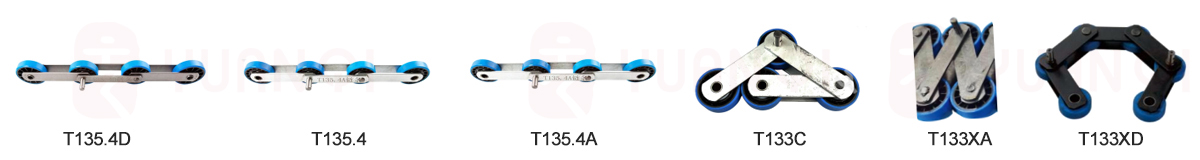

Schindler Series |
||||||
|
Model |
T135.4D |
T135.4 |
T135.4A |
T133C |
T133XA |
T133XD |
|
Pitch |
135.46 |
135.46 |
135.46 |
133.33 |
133.33 |
133.33 |
|
Outer chain plate width*thickness |
26*4 |
30*5 |
30*5 |
40*5 |
29*4 |
50*5 |
|
Inner plate width*thickness |
35*3 |
35*5 |
35*5 |
40*5 |
40*3 |
50*5 |
|
Scroll Wheel |
76.2*22 |
76.2*22 |
76.2*22 |
76*25-6204 |
76*25 |
80*25-6206 |
|
Pin |
12.7/12.7 |
15/12.7 |
15/15 |
14.63 |
12.67 |
20.00 |
 |
||||||
|

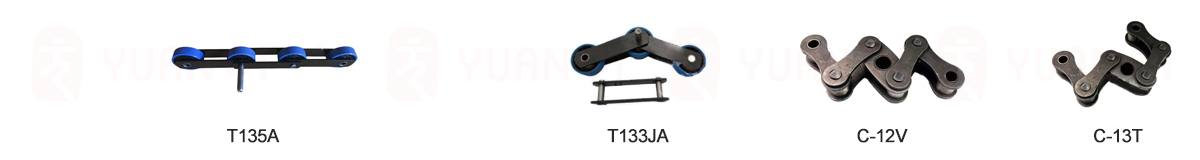

Thyssen Series |
SJEC Series |
|||
|
Model |
T135A |
T133JA |
C-12V |
C-13T |
|
Pitch |
135 |
133.33 |
68.4 |
68.4 |
|
Outer chain plate width*thickness |
30*5 |
29*4 |
4 |
4.8 |
|
Inner plate width*thickness |
35*5 |
40*3 |
4 |
4.8 |
|
Scroll Wheel |
75*23.5-6204 |
70*25-6203 |
C-12V |
C-13V/LG |
|
Pin |
14.63 pin length 116/118/119.7 |
12.67 |
12.80 |
14.29 |
 |
||||
|

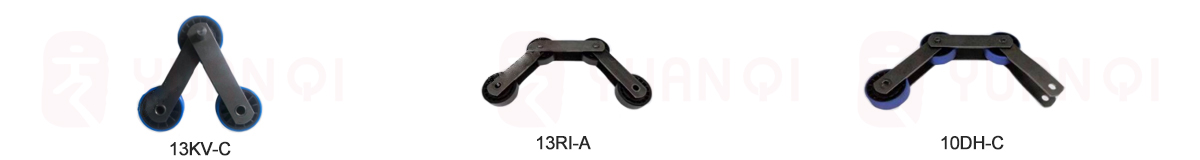

Kone Series |
|||
|
Model |
13KV-C |
13RI-A |
10DH-C |
|
Pitch |
133.33 |
133.33 |
133.33 |
|
Outer chain plate width*thickness |
35*4 |
35*4 |
29*4 |
|
Inner plate width*thickness |
35*4 |
35*4 |
40*3 |
|
Scroll Wheel |
75*23.5 skeleton wheel protrude32 |
75*23.5 skeleton wheel protrude32 |
75*23.5 skeleton wheel protrude32 |
|
Pin |
12.8 |
12.8 |
12.8 |
 |
|||
|

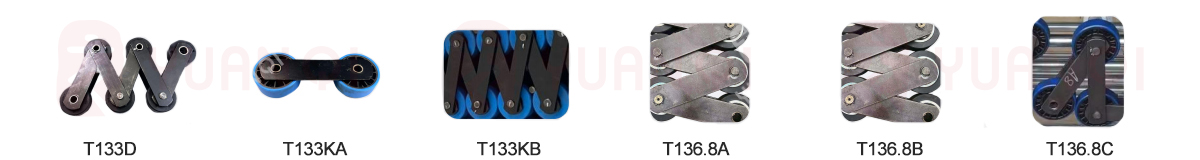

CANNY/SIGMA Series |
||||||
|
Model |
T133D |
T133KA |
T133KB |
T136.8A |
T136.8B |
T136.8C |
|
Pitch |
133.33 |
133.33 |
133.33 |
136.8 |
136.8 |
136.8 |
|
Outer chain plate width*thickness |
35*5 |
40*5 |
30*5 |
40*5 |
40*5 |
30*5 |
|
Inner plate width*thickness |
40*5 |
40*5 |
35*5 |
40*5 |
35*5 |
35*5 |
|
Scroll Wheel |
70*25-6204 |
75*25-6204 |
70*25-6204 |
80*22-6204 |
80*22-6204 |
80*22-6204 |
|
Pin |
14.63 |
14.63 |
14.63 |
14.63 |
14.63 |
14.63 |
 |
||||||
|

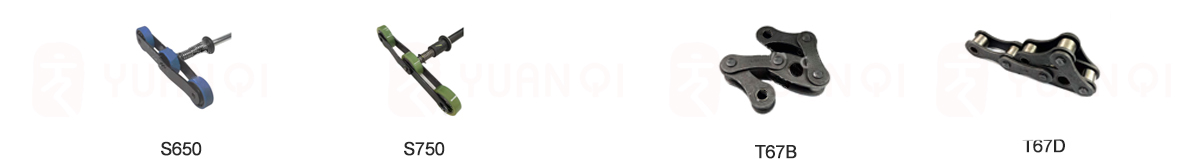

HYUNDAI Series |
HITACHI/MITSUBISHI Series |
|||
|
Model |
S650 |
S750 |
T67B |
T67D |
|
Pitch |
135.46 |
135.46 |
67.733 |
67.733 |
|
Outer chain plate width*thickness |
40*5 |
33*5 |
4.8 |
4 |
|
Inner plate width*thickness |
40*5 |
33*5 |
4.8 |
4 |
|
Scroll Wheel |
76*25-6204 |
76*21.6-6203 |
Sleeve outer diameter 25mm |
Sleeve outer diameter 27mm |
|
Pin |
14.63 |
12.70 |
14.29 |
14.29 |
 |
||||
