94102811

Otis AT120 elevator door motor FAA24350BL1 FAA24350BL2

It is recommended that when using this motor, check the version number of the matching door machine inverter.  Version 1.17 can be used normally. When it is lower than version 1.17 (for example, the old version 1.13 is more common), it will cause the motor to open and close the door failure after working for a long time (this cannot be avoided by domestic or imported motors), and the door machine inverter version needs to be upgraded to resolve it. . We provide upgrade services.


  • Brand: Otis
  • Type: FAA24350BL1
    FAA24350BL2
  • Voltage : 24V
  • Rotating speed: 200rpm
  • Applicable: Otis Elevator
  • Product Detail

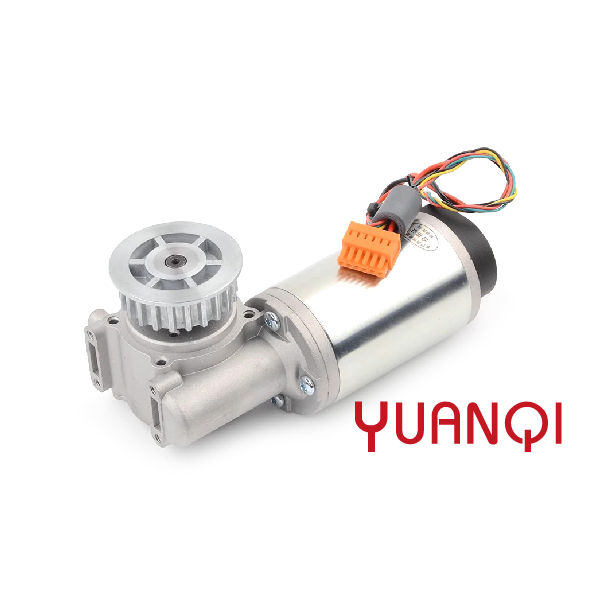

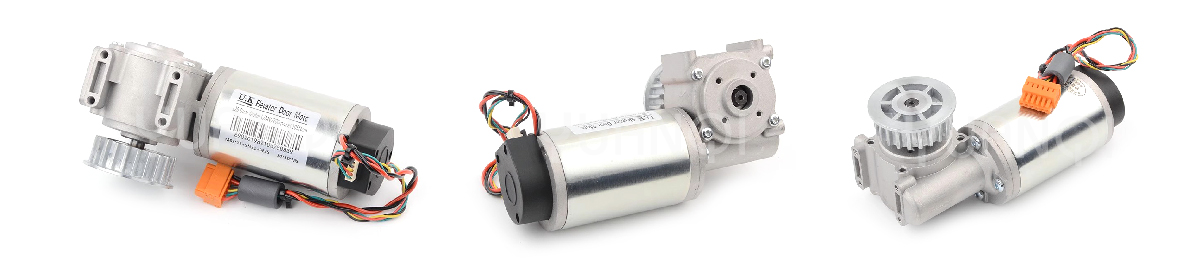

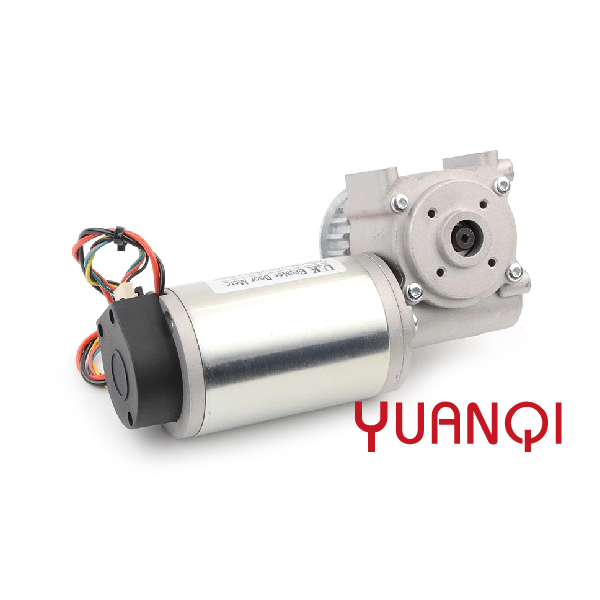

    Product Display

    Otis-AT120-elevator-door-motor-FAA24350BL1-FAA24350BL2...

    AT120 door operator consists of DC motor, controller, transformer, etc., which are directly installed on the aluminum door beam. The motor has a reduction gear and an encoder and is driven by a controller. The transformer supplies power to the controller. AT120 door machine controller can establish connection with LCBII/TCB through discrete signals, and can achieve the ideal door opening and closing speed curve. It is highly reliable, simple to operate, and has small mechanical vibration. It is suitable for door systems with a clear opening width of no more than 900mm.

    Product advantages (the latter two require corresponding servers to operate): door width self-learning, torque self-learning, motor direction self-learning, menu-based interface, flexible on-site parameter adjustment
